Ace::Analytic::Chunk Class Reference

#include <ace_analytic_chunk.h>

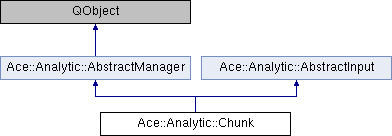

Inheritance diagram for Ace::Analytic::Chunk:

Public Member Functions
virtual bool	isFinished () const override final
	Chunk (quint16 type, int index, int size)
virtual	~Chunk () override final
Public Member Functions inherited from Ace::Analytic::AbstractManager
quint16	analyticType () const
int	size () const
EAbstractAnalytic::Input::Type	type (int index) const
QVariant	data (int index, EAbstractAnalytic::Input::Role role) const
QList< QString >	commandLineArguments () const
void	set (int index, const QVariant &value)
Public Member Functions inherited from Ace::Analytic::AbstractInput
	AbstractInput ()=default
	~AbstractInput ()

Protected Slots
virtual void	start () override final
void	process ()
Protected Slots inherited from Ace::Analytic::AbstractManager
virtual void	start ()

Protected Member Functions
virtual QFile *	addOutputFile (const QString &path) override final
virtual Ace::DataObject *	addOutputData (const QString &path, quint16 type, const EMetadata &system) override final
virtual void	saveResult (std::unique_ptr< EAbstractAnalytic::Block > &&result) override final
Protected Member Functions inherited from Ace::Analytic::AbstractManager
	AbstractManager (quint16 type)
std::unique_ptr< EAbstractAnalytic::Block >	makeWork (int index)
void	writeResult (std::unique_ptr< EAbstractAnalytic::Block > &&result, int expectedIndex)
EAbstractAnalytic *	analytic ()
const EAbstractAnalytic *	analytic () const
Protected Member Functions inherited from Ace::Analytic::AbstractInput
virtual int	index () const
virtual void	writeResult (std::unique_ptr< EAbstractAnalytic::Block > &&result)

Additional Inherited Members
Public Slots inherited from Ace::Analytic::AbstractManager
void	initialize ()
void	terminationRequested ()
void	finish ()
Signals inherited from Ace::Analytic::AbstractManager
void	progressed (int percentComplete)
void	done ()
void	finished ()
Static Public Member Functions inherited from Ace::Analytic::AbstractManager
static std::unique_ptr< Ace::Analytic::AbstractManager >	makeManager (quint16 type, int index, int size)

Detailed Description

This is the chunk run manager. This manager is used to execute only a portion of the blocks for an analytic, temporarily saving them in a binary file. The function of this class is to determine which part of the work blocks it must process into result blocks based off the index and size it is given. From there it processes the chunk of blocks and saved them into a temporary binary file. The location and file name of the chunk is determined by global settings and the index of this chunk manager.

Constructor & Destructor Documentation

Chunk()

Chunk::Chunk ( quint16  type, int  index, int  size  )

explicit

Constructs a new chunk manager with the given analytic type, chunk index, and chunk size.

Parameters

type	The analytic type that is used.
index	The chunk index for this process.
size	The chunk size which is the total number of chunks the analytic is split into.

~Chunk()

Chunk::~Chunk ( )

finaloverridevirtual

Deletes the qt data stream used for saved data to the chunk file.

Member Function Documentation

addOutputData()

Ace::DataObject * Chunk::addOutputData ( const QString &  path, quint16  type, const EMetadata &  system  )

finaloverrideprotectedvirtual

This interface opens a new data object with the given path, erasing any data the file may have contained and returning a pointer to the new data object. This implementation does nothing and returns a null pointer because a chunk manager saved result blocks to a special binary file.

Parameters

path	Unused path to data object file.
type	Unused data object type.
system	Unused system metadata for new data objects.

Reimplemented from Ace::Analytic::AbstractManager.

addOutputFile()

QFile * Chunk::addOutputFile ( const QString &  path )

finaloverrideprotectedvirtual

Implements the interface that opens a new file set to write only and truncate with the given path. This implementation does nothing and returns a null pointer because a chunk manager saves result blocks to a special binary file.

Parameters

path	Unused path to file.

Reimplemented from Ace::Analytic::AbstractManager.

isFinished()

bool Chunk::isFinished ( ) const

finaloverridevirtual

Implements the interface that tests if this abstract input is finished and received all result blocks for its analytic. This implementation is special in that it only processes a chunk of its analytic work blocks therefore it is finished once it has received all of its portion of result blocks.

Returns

True if this abstract input is finished or false otherwise.

Implements Ace::Analytic::AbstractInput.

process

void Chunk::process ( )

protectedslot

Processes the work blocks this chunk manager is responsible for saving, adding them to this manager's abstract run object for processing.

saveResult()

void Chunk::saveResult ( std::unique_ptr< EAbstractAnalytic::Block > &&  result )

finaloverrideprotectedvirtual

Implements the interface that saves the given result block to its underlying analytic and assumes the order of indexes given is not sorted and random. This implementation simply saves the raw result block to a temporary binary file.

Parameters

result

The result block that is saved to a temporary binary file.

Reimplemented from Ace::Analytic::AbstractInput.

start

void Chunk::start ( )

finaloverrideprotectedvirtualslot

Implements the interface that is called once to begin the analytic run for this manager after all argument input has been set. This implementation initializes the chunk file, indexes, and schedules the process slot to be called.

---

The documentation for this class was generated from the following files:

• ace_analytic_chunk.h
• ace_analytic_chunk.cpp
