#include <ace_analytic_abstractmanager.h>

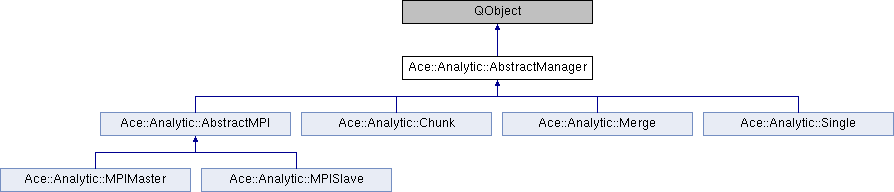

Inheritance diagram for Ace::Analytic::AbstractManager:

Public Slots
void	initialize ()

void	terminationRequested ()

void	finish ()

Signals
void	progressed (int percentComplete)

void	done ()

void	finished ()

Public Member Functions
quint16	analyticType () const

int	size () const

EAbstractAnalytic::Input::Type	type (int index) const

QVariant	data (int index, EAbstractAnalytic::Input::Role role) const

QList< QString >	commandLineArguments () const

void	set (int index, const QVariant &value)

Static Public Member Functions
static std::unique_ptr< Ace::Analytic::AbstractManager >	makeManager (quint16 type, int index, int size)

Protected Slots
virtual void	start ()

Protected Member Functions
virtual QFile *	addOutputFile (const QString &path)

virtual Ace::DataObject *	addOutputData (const QString &path, quint16 type, const EMetadata &system)

	AbstractManager (quint16 type)

std::unique_ptr< EAbstractAnalytic::Block >	makeWork (int index)

void	writeResult (std::unique_ptr< EAbstractAnalytic::Block > &&result, int expectedIndex)

EAbstractAnalytic *	analytic ()

const EAbstractAnalytic *	analytic () const

Detailed Description

This represents a session manager for a single analytic run for a specific analytic type. This class provides methods for all input for a new analytic run and starts the process of running it, along with cleaning up all open files and data objects once the analytic has finished running. An implementation of this class is responsible for running the analytic once this class starts it and signaling when it is finished. This class creates the correct type of implementation class depending on the input given and status of things like MPI. This is the root analytic class that should be used to interface with the analytic run system outside of the core library.

Constructor & Destructor Documentation

◆ AbstractManager()

AbstractManager::AbstractManager ( quint16 type )

explicitprotected

Constructs a new manager object with the given analytic type. If the given type is out of range then an exception is thrown. This is protected because this class should never created without an implementation.

Parameters

type	Analytic type that is used for this manager's analytic run.

Member Function Documentation

◆ addOutputData()

Ace::DataObject * AbstractManager::addOutputData	(	const QString &	path,
		quint16	type,
		const EMetadata &	system
	)

protectedvirtual

This interface opens a new data object with the given path, erasing any data the file may have contained and returning a pointer to the new data object. The default implementation opens the data object unless the given path string is empty.

Parameters

path	Path to the output data object that is opened.
type	Data type the new data object file is initialized to.
system	The system metadata for the new data object.

Returns: Pointer to new data object with the given path or null if no path given.

Reimplemented in Ace::Analytic::MPISlave, and Ace::Analytic::Chunk.

◆ addOutputFile()

QFile * AbstractManager::addOutputFile ( const QString & path )

protectedvirtual

This interface opens a new file set to write only and truncate with the given path. If the file fails to open then an exception is thrown. The default implementation opens the file unless the path is an empty string.

Parameters

path	Path to the output file that is opened.

Returns: Pointer to qt file device of opened file or null if no path given.

Reimplemented in Ace::Analytic::MPISlave, and Ace::Analytic::Chunk.

◆ analytic() [1/2]

EAbstractAnalytic * AbstractManager::analytic ( )

protected

Returns a pointer to the abstract analytic for this manager.

Returns: Pointer to this manager's abstract analytic.

◆ analytic() [2/2]

const EAbstractAnalytic * AbstractManager::analytic ( ) const

protected

Returns a read only pointer to the abstract analytic for this manager.

Returns: Read only pointer to this manager's abstract analytic.

◆ analyticType()

quint16 AbstractManager::analyticType ( ) const

Returns the analytic type this analytic manager contains.

Returns: Analytic type this analytic manager contains.

◆ commandLineArguments()

QList< QString > AbstractManager::commandLineArguments ( ) const

Returns a list of all command line arguments this manager's analytic provides as input arguments.

Returns: List of all command line arguments for this manager's analytic.

◆ data()

QVariant AbstractManager::data	(	int	index,
		EAbstractAnalytic::Input::Role	role
	)		const

Returns data about an analytic argument with the given role and index.

Parameters

index	Argument index whose data is returned with the given role.
role	Role of the data that is returned with the given index.

Returns: Data with the given role and index.

◆ done

void Ace::Analytic::AbstractManager::done ( )

signal

Signals the analytic is done.

◆ finish

void AbstractManager::finish ( )

slot

Called to Complete this manager's analytic run, signaling completion and requesting deletion.

◆ finished

void Ace::Analytic::AbstractManager::finished ( )

signal

Signals the analytic and this manager has completely finished execution and is ready to be destroyed.

◆ initialize

void AbstractManager::initialize ( )

slot

Called to Finalize all input to this manager's analytic and calls the analytic object's initialize interface. This also emits a signal to call the start slot once the event loop is started.

◆ makeManager()

std::unique_ptr< Ace::Analytic::AbstractManager > AbstractManager::makeManager	(	quint16	type,
		int	index,
		int	size
	)

static

Makes a new manager with the correct implementation class and given analytic type, returning a pointer to the new manager. The index and size parameters are for chunk/merge runs. If this is not a chunk/merge run the index is 0 and size is 1. If this is a merge run the index is -1.

Parameters

type	The analytic type that is instantiated for this manager's run.
index	The chunk index for this process. Unless this is a chunk or merge run this is always 0. If this is a chunk run the index is the ID for this chunk process so it knows what work to do. An index of -1 means this is a merge run that takes all the chunk files to produce the finished output.
size	The chunk size of this process. Unless this is a chunk run this is always 1. If this is a chunk run this is the total number of chunk processes running the analytic process.

Returns: Pointer to the new manager object.

◆ makeWork()

std::unique_ptr< EAbstractAnalytic::Block > AbstractManager::makeWork ( int index )

protected

Returns a new work block from this manager's analytic with the given index. This also does error checking on the new work block.

Parameters

index

Returns: Pointer to a new work block with the given index.

◆ progressed

void Ace::Analytic::AbstractManager::progressed ( int percentComplete )

signal

Signals the running analytic has made progress to the given percentage.

Parameters

percentComplete The percent complete out of 100 for this analytic.

◆ set()

void AbstractManager::set	(	int	index,
		const QVariant &	value
	)

Sets the analytic argument to the given value with the given index. The value is not given to the underlying analytic until initialize is called. For file and data arguments the file path should be given as a string.

Parameters

index	Argument index whose value is set to the given value.
value	Value that the argument with the given index is set to.

◆ size()

int AbstractManager::size ( ) const

Returns the number of arguments this manager's analytic has for user input.

Returns: Number of analytic arguments for this manager.

◆ start

void AbstractManager::start ( )

protectedvirtualslot

This interface is called once to begin the analytic run for this manager after all argument input has been set. The default implementation does nothing.

◆ terminationRequested

void AbstractManager::terminationRequested ( )

slot

Called to request this manager terminate its analytic run before completion.

◆ type()

EAbstractAnalytic::Input::Type AbstractManager::type ( int index ) const

Returns the argument type for the given argument index of this manager's analytic.

Parameters

index Argument index whose type is returned.

Returns: Argument type for the given index.

◆ writeResult()

void AbstractManager::writeResult	(	std::unique_ptr< EAbstractAnalytic::Block > &&	result,
		int	expectedIndex
	)

protected

Processes the given result block with this manager's analytic. This also does error checking and determines the progress of this analytic run.

Parameters

result	The result block that is processed by this manager's analytic.
expectedIndex	The expected index that should be equal to the given result block's index.

The documentation for this class was generated from the following files:

ace_analytic_abstractmanager.h
ace_analytic_abstractmanager.cpp
