#include <ace_analytic_mpislave.h>

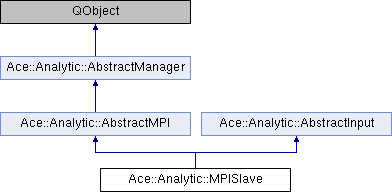

Inheritance diagram for Ace::Analytic::MPISlave:

Public Member Functions
virtual bool	isFinished () const override final

	MPISlave (quint16 type)

virtual	~MPISlave () override final

Public Member Functions inherited from Ace::Analytic::AbstractManager
quint16	analyticType () const

int	size () const

EAbstractAnalytic::Input::Type	type (int index) const

QVariant	data (int index, EAbstractAnalytic::Input::Role role) const

QList< QString >	commandLineArguments () const

void	set (int index, const QVariant &value)

Public Member Functions inherited from Ace::Analytic::AbstractInput
	AbstractInput ()=default

	~AbstractInput ()

Protected Member Functions
virtual void	mpiStart (Type type, int platform, int device) override final

virtual QFile *	addOutputFile (const QString &path) override final

virtual Ace::DataObject *	addOutputData (const QString &path, quint16 type, const EMetadata &system) override final

virtual void	saveResult (std::unique_ptr< EAbstractAnalytic::Block > &&result) override final

Protected Member Functions inherited from Ace::Analytic::AbstractMPI
	AbstractMPI (quint16 type)

Protected Member Functions inherited from Ace::Analytic::AbstractManager
	AbstractManager (quint16 type)

std::unique_ptr< EAbstractAnalytic::Block >	makeWork (int index)

void	writeResult (std::unique_ptr< EAbstractAnalytic::Block > &&result, int expectedIndex)

EAbstractAnalytic *	analytic ()

const EAbstractAnalytic *	analytic () const

Protected Member Functions inherited from Ace::Analytic::AbstractInput
virtual int	index () const

virtual void	writeResult (std::unique_ptr< EAbstractAnalytic::Block > &&result)

Additional Inherited Members
Public Types inherited from Ace::Analytic::AbstractMPI
enum	Type { Serial, OpenCL }

Public Slots inherited from Ace::Analytic::AbstractManager
void	initialize ()

void	terminationRequested ()

void	finish ()

Signals inherited from Ace::Analytic::AbstractManager
void	progressed (int percentComplete)

void	done ()

void	finished ()

Static Public Member Functions inherited from Ace::Analytic::AbstractManager
static std::unique_ptr< Ace::Analytic::AbstractManager >	makeManager (quint16 type, int index, int size)

Protected Types inherited from Ace::Analytic::AbstractMPI
enum	Code { Terminate = -1, ReadyAsSerial = -2, ReadyAsOpenCL = -3 }

Protected Slots inherited from Ace::Analytic::AbstractMPI
virtual void	start () override final

Protected Slots inherited from Ace::Analytic::AbstractManager
virtual void	start ()

Detailed Description

This is the MPI slave manager. This manager is used for an MPI run with any node that is not rank 0 and by definition a slave node. The sole function of this class is to process work blocks given to it by the master node and return the corresponding result blocks until a termination code is received. This class also sends a special code to the master node to signal when it is ready to start processing work blocks and if it is serial or accelerated. This special signal to the master node is not sent until it is given the resource type it will use by having the interface mpi start called from its inherited abstract class.

Constructor & Destructor Documentation

◆ MPISlave()

MPISlave::MPISlave ( quint16 type )

explicit

Constructs a new MPI slave manager with the given analytic type.

Parameters

type	The analytic type this manager will use.

◆ ~MPISlave()

MPISlave::~MPISlave ( )

finaloverridevirtual

Properly shuts down the MPI system.

Member Function Documentation

◆ addOutputData()

Ace::DataObject * MPISlave::addOutputData	(	const QString &	path,
		quint16	type,
		const EMetadata &	system
	)

finaloverrideprotectedvirtual

This interface opens a new data object with the given path, erasing any data the file may have contained and returning a pointer to the new data object. This implementation does nothing and returns a null pointer because it is a slave node and does not handle output.

Parameters

path	Unused path to data object file.
type	Unused data object type.
system	Unused system metadata for new data objects.

Returns: A null pointer.

Reimplemented from Ace::Analytic::AbstractManager.

◆ addOutputFile()

QFile * MPISlave::addOutputFile ( const QString & path )

finaloverrideprotectedvirtual

Implements the interface that opens a new file set to write only and truncate with the given path. This implementation does nothing and returns a null pointer because it is a slave node and does not handle output.

Parameters

path	Unused path to file.

Returns: A null pointer.

Reimplemented from Ace::Analytic::AbstractManager.

◆ isFinished()

bool MPISlave::isFinished ( ) const

finaloverridevirtual

Implements the interface that tests if this abstract input is finished and received all result blocks for its analytic. This implementation is special because this is a slave node and is finished once it has received the termination signal and no longer has any blocks it is working on.

Returns: True if this abstract input is finished or false otherwise.

Implements Ace::Analytic::AbstractInput.

◆ mpiStart()

void MPISlave::mpiStart	(	Type	type,
		int	platform,
		int	device
	)

finaloverrideprotectedvirtual

Implements the interface that is called to start this MPI manager as a slave node with the given resource type and optional platform and device index.

Parameters

type	The resource type this slave node will use for block processing.
platform	The optional platform index this slave node will use if its resource type is OpenCL.
device	The optional device index this slave node will use if its resource type is OpenCL.

Reimplemented from Ace::Analytic::AbstractMPI.

◆ saveResult()

void MPISlave::saveResult ( std::unique_ptr< EAbstractAnalytic::Block > && result )

finaloverrideprotectedvirtual

Implements the interface that saves the given result block to its underlying analytic and assumes the order of indexes given is not sorted and random. This implementation simply sends the given result block back to the master node.

Parameters

result The result block that is sent to the master node for saving.

Reimplemented from Ace::Analytic::AbstractInput.

The documentation for this class was generated from the following files:

ace_analytic_mpislave.h
ace_analytic_mpislave.cpp
