#include <ace_analytic_abstractmpi.h>

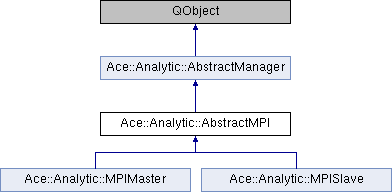

Inheritance diagram for Ace::Analytic::AbstractMPI:

Public Types
enum	Type { Serial, OpenCL }

Protected Types
enum	Code { Terminate = -1, ReadyAsSerial = -2, ReadyAsOpenCL = -3 }

Protected Slots
virtual void	start () override final

Protected Slots inherited from Ace::Analytic::AbstractManager
virtual void	start ()

Protected Member Functions
virtual void	mpiStart (Type type, int platform, int device)

	AbstractMPI (quint16 type)

Protected Member Functions inherited from Ace::Analytic::AbstractManager
virtual QFile *	addOutputFile (const QString &path)

virtual Ace::DataObject *	addOutputData (const QString &path, quint16 type, const EMetadata &system)

	AbstractManager (quint16 type)

std::unique_ptr< EAbstractAnalytic::Block >	makeWork (int index)

void	writeResult (std::unique_ptr< EAbstractAnalytic::Block > &&result, int expectedIndex)

EAbstractAnalytic *	analytic ()

const EAbstractAnalytic *	analytic () const

Additional Inherited Members
Public Slots inherited from Ace::Analytic::AbstractManager
void	initialize ()

void	terminationRequested ()

void	finish ()

Signals inherited from Ace::Analytic::AbstractManager
void	progressed (int percentComplete)

void	done ()

void	finished ()

Public Member Functions inherited from Ace::Analytic::AbstractManager
quint16	analyticType () const

int	size () const

EAbstractAnalytic::Input::Type	type (int index) const

QVariant	data (int index, EAbstractAnalytic::Input::Role role) const

QList< QString >	commandLineArguments () const

void	set (int index, const QVariant &value)

Static Public Member Functions inherited from Ace::Analytic::AbstractManager
static std::unique_ptr< Ace::Analytic::AbstractManager >	makeManager (quint16 type, int index, int size)

Detailed Description

This represents the common resources required for both master and slave MPI managers. The primary purpose of this class is to have each local rank 0 node assign the different resources of the system to all nodes which share them in the same local rank. The one interface this abstract class has is called for starting the MPI run of a slave node, assigning them a specific resource to use. The master node with local rank 0 skips itself in assigning resources since it does not execute blocks like a slave node. This class also defines special codes passed between master and slave nodes.

Member Enumeration Documentation

◆ Code

enum Ace::Analytic::AbstractMPI::Code

protected

Defines special codes passed between the master and slave nodes.

Enumerator
Terminate	Defines the terminate code which is sent to a slave node to signal it is done and should exit.

◆ Type

enum Ace::Analytic::AbstractMPI::Type

Defines the resource types that slave nodes can be assigned to execute as.

Enumerator

Serial

Defines the serial resource which causes a slave node to run in plain serial mode with no OpenCL device.

Defines the OpenCL resource which causes the slave node to run in accelerated OpenCL mode with a given platform and device index.

Constructor & Destructor Documentation

◆ AbstractMPI()

AbstractMPI::AbstractMPI ( quint16 type )

explicitprotected

Constructs a new abstract MPI object with the given analytic type.

Parameters

type	Analytic type that is used for this manager's analytic run.

Member Function Documentation

◆ mpiStart()

void AbstractMPI::mpiStart	(	Type	type,
		int	platform,
		int	device
	)

protectedvirtual

This interface is called to start this MPI manager as a slave node with the given resource type and optional platform and device index. The platform and device index is only used if the given resource type is OpenCL. The default implementation throws an exception because if this is called it should be implemented.

Parameters

type	The resource type this MPI slave node runs as.
platform	The optional platform index for the resource type if it is OpenCL.
device	The optional device index for the resource type if it is OpenCL.

Reimplemented in Ace::Analytic::MPISlave.

◆ start

void AbstractMPI::start ( )

finaloverrideprotectedvirtualslot

Implements the interface that is called once to begin the analytic run for this manager after all argument input has been set. This implementation assigns the resources of the local system only if this MPI node is local rank 0.

The documentation for this class was generated from the following files:

ace_analytic_abstractmpi.h
ace_analytic_abstractmpi.cpp
