#include <ace_analytic_mpimaster.h>

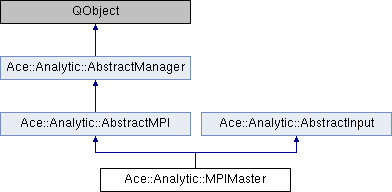

Inheritance diagram for Ace::Analytic::MPIMaster:

Public Member Functions
virtual bool	isFinished () const override final

	MPIMaster (quint16 type)

virtual	~MPIMaster () override final

Public Member Functions inherited from Ace::Analytic::AbstractManager
quint16	analyticType () const

int	size () const

EAbstractAnalytic::Input::Type	type (int index) const

QVariant	data (int index, EAbstractAnalytic::Input::Role role) const

QList< QString >	commandLineArguments () const

void	set (int index, const QVariant &value)

Public Member Functions inherited from Ace::Analytic::AbstractInput
virtual void	saveResult (std::unique_ptr< EAbstractAnalytic::Block > &&result)

	AbstractInput ()=default

	~AbstractInput ()

Protected Member Functions
virtual int	index () const override final

virtual void	writeResult (std::unique_ptr< EAbstractAnalytic::Block > &&result) override final

Protected Member Functions inherited from Ace::Analytic::AbstractMPI
virtual void	mpiStart (Type type, int platform, int device)

	AbstractMPI (quint16 type)

Protected Member Functions inherited from Ace::Analytic::AbstractManager
virtual QFile *	addOutputFile (const QString &path)

virtual Ace::DataObject *	addOutputData (const QString &path, quint16 type, const EMetadata &system)

	AbstractManager (quint16 type)

std::unique_ptr< EAbstractAnalytic::Block >	makeWork (int index)

void	writeResult (std::unique_ptr< EAbstractAnalytic::Block > &&result, int expectedIndex)

EAbstractAnalytic *	analytic ()

const EAbstractAnalytic *	analytic () const

Additional Inherited Members
Public Types inherited from Ace::Analytic::AbstractMPI
enum	Type { Serial, OpenCL }

Public Slots inherited from Ace::Analytic::AbstractManager
void	initialize ()

void	terminationRequested ()

void	finish ()

Signals inherited from Ace::Analytic::AbstractManager
void	progressed (int percentComplete)

void	done ()

void	finished ()

Static Public Member Functions inherited from Ace::Analytic::AbstractManager
static std::unique_ptr< Ace::Analytic::AbstractManager >	makeManager (quint16 type, int index, int size)

Protected Types inherited from Ace::Analytic::AbstractMPI
enum	Code { Terminate = -1, ReadyAsSerial = -2, ReadyAsOpenCL = -3 }

Protected Slots inherited from Ace::Analytic::AbstractMPI
virtual void	start () override final

Protected Slots inherited from Ace::Analytic::AbstractManager
virtual void	start ()

Detailed Description

This is the MPI master manager. This manager is used for an MPI run with the node that has world rank 0. The main function of this class is to create new work blocks and assign their execution to other slave nodes within the MPI run, along with getting results back and saving them to the manager's underlying analytic with the indexes being in order. Because this manager does not process blocks itself it has no abstract run object of its own. Also this manager does not start giving out work blocks to slave nodes until they signal they are ready to process them.

Constructor & Destructor Documentation

◆ MPIMaster()

MPIMaster::MPIMaster ( quint16 type )

explicit

Constructs a new MPI master manager with the given analytic type.

Parameters

type	The analytic type this manager will use.

◆ ~MPIMaster()

MPIMaster::~MPIMaster ( )

finaloverridevirtual

Properly shuts down the MPI system.

Member Function Documentation

◆ index()

int MPIMaster::index ( ) const

finaloverrideprotectedvirtual

Implements the interface that returns the next expected result block index to maintain order of result blocks.

Returns: The next expected result block index to maintain order.

Reimplemented from Ace::Analytic::AbstractInput.

◆ isFinished()

bool MPIMaster::isFinished ( ) const

finaloverridevirtual

Implements the interface that tests if this abstract input is finished and received all result blocks for its analytic.

Returns: True if this abstract input is finished or false otherwise.

Implements Ace::Analytic::AbstractInput.

◆ writeResult()

void MPIMaster::writeResult ( std::unique_ptr< EAbstractAnalytic::Block > && result )

finaloverrideprotectedvirtual

Implements the interface that is called to save the given result block to the underlying analytic and it can be assumed that the index order is maintained from least to greatest.

Parameters

result The result block that is processed by this manager's analytic.

Reimplemented from Ace::Analytic::AbstractInput.

The documentation for this class was generated from the following files:

ace_analytic_mpimaster.h
ace_analytic_mpimaster.cpp
